Nissan’s Pitch-R, developed by UNIT9 can autonomously draw 11-a-side, 7-a-side and 5-a-side pitches in various flat outdoor environments in different locations across the world.

Kate Lynham, Creative Director, UNIT9
Nissan Pitch-R Robot
Nissan Pitch-R Robot

The background

Nissan has been sponsoring the Champions League for quite some time. They wanted to promote their connection of smart cars to grassroots football by bringing the sport to everyone, through the use of smarter technology.

Nissan Pitch-R Robot

The execution

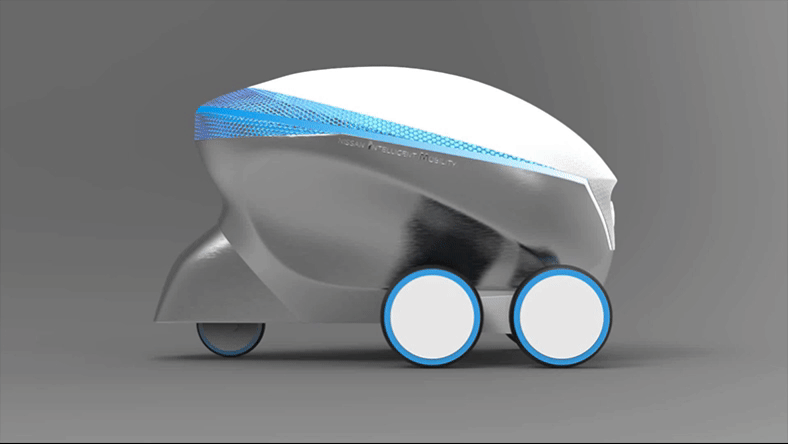

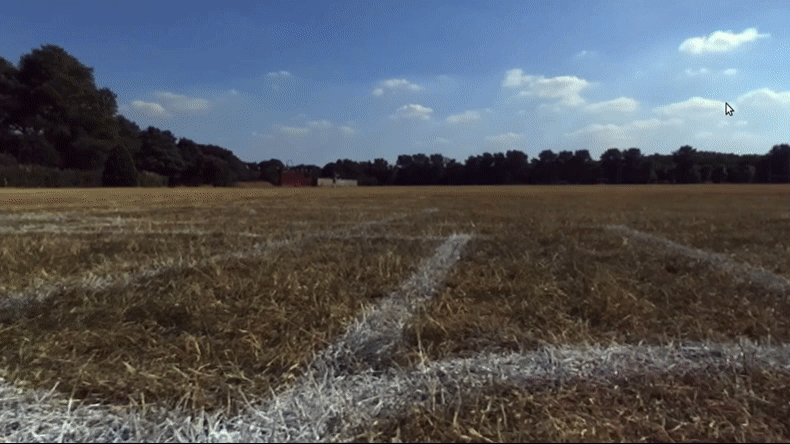

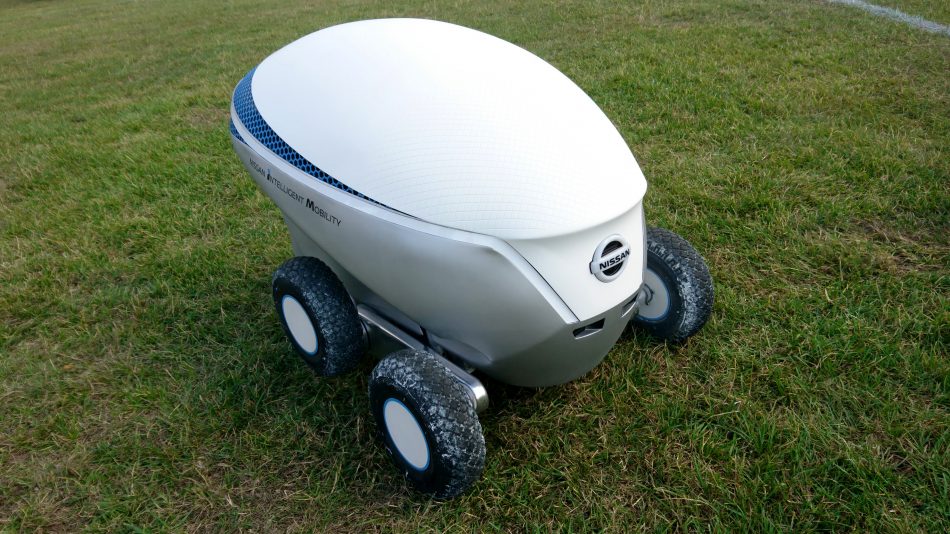

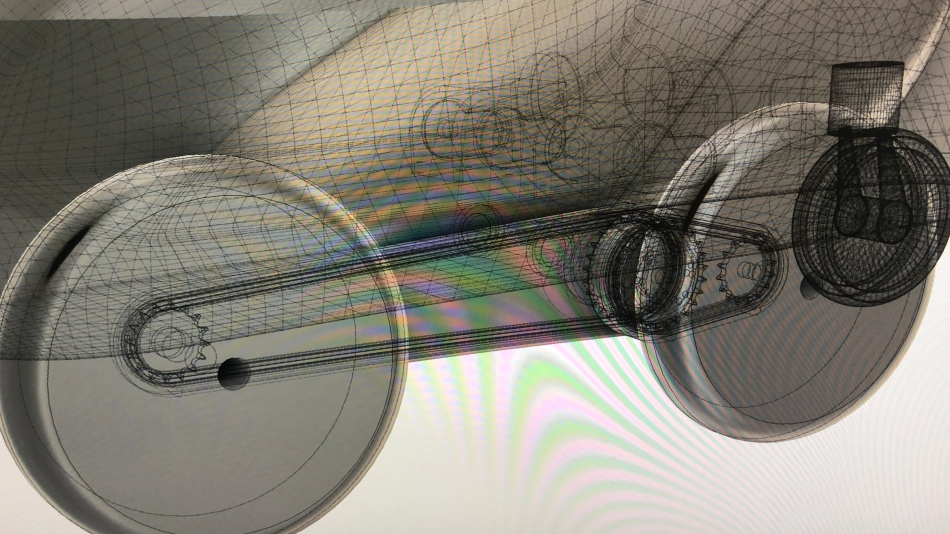

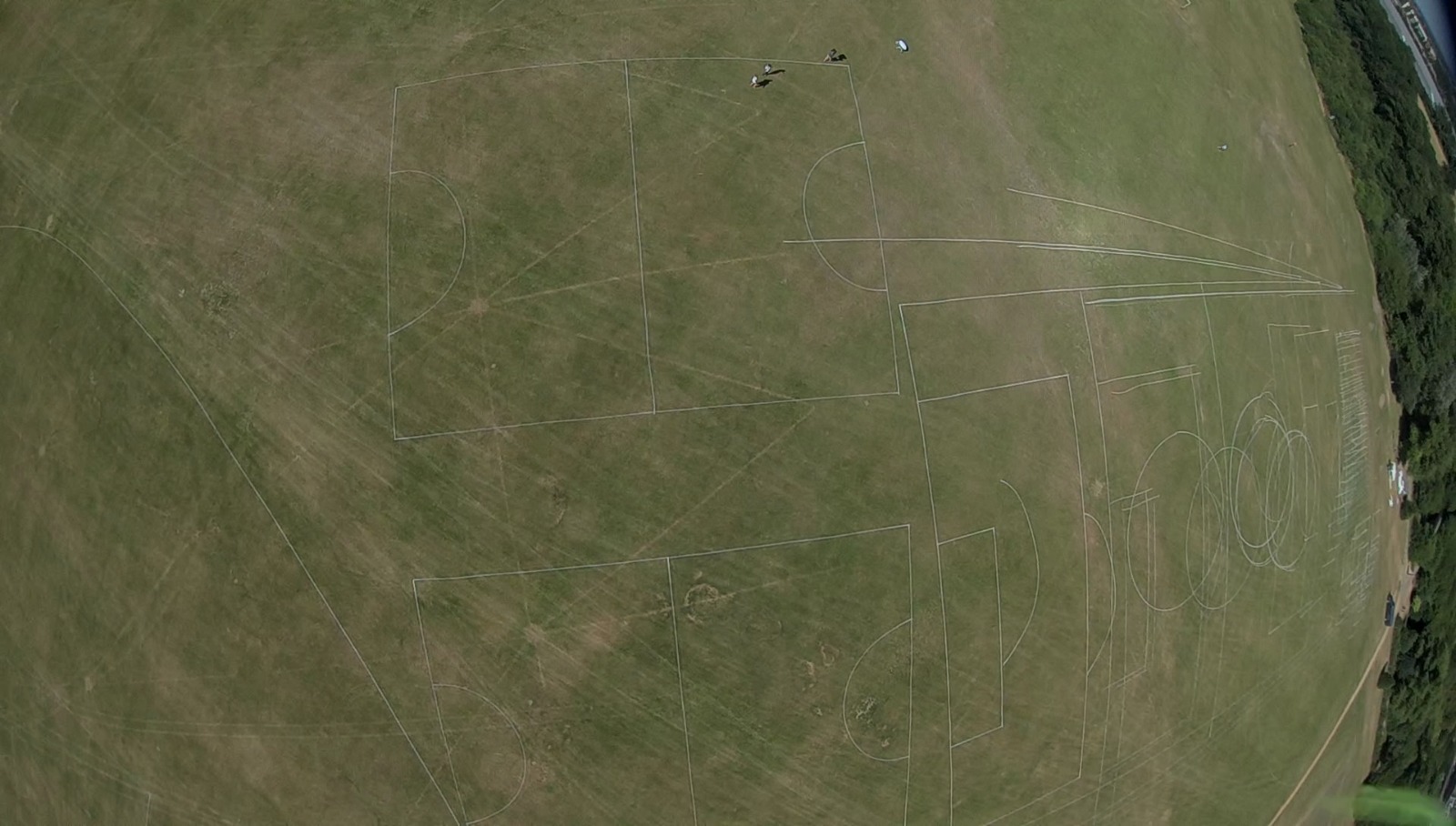

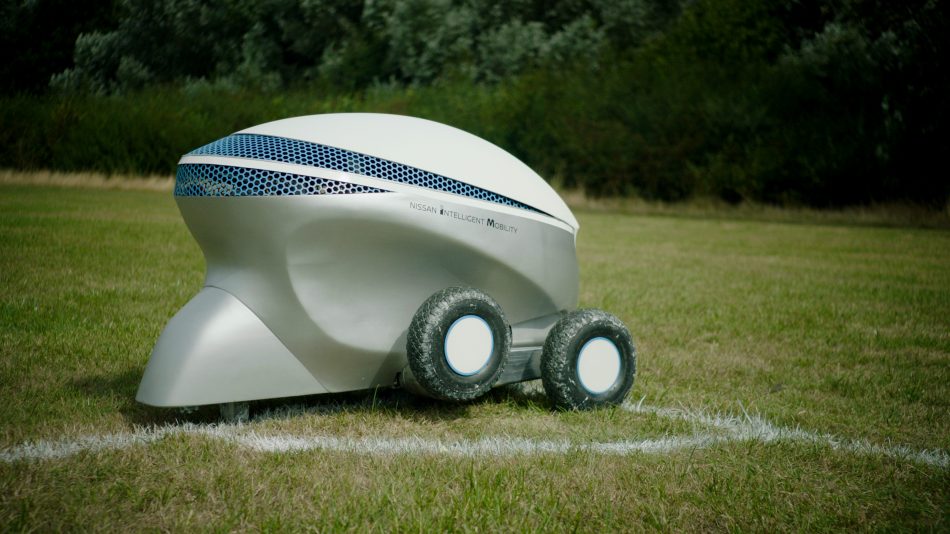

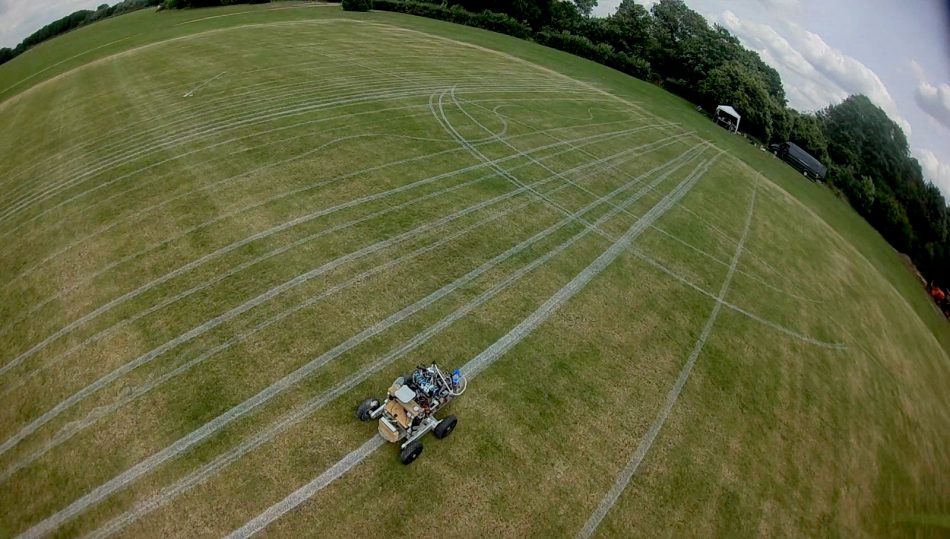

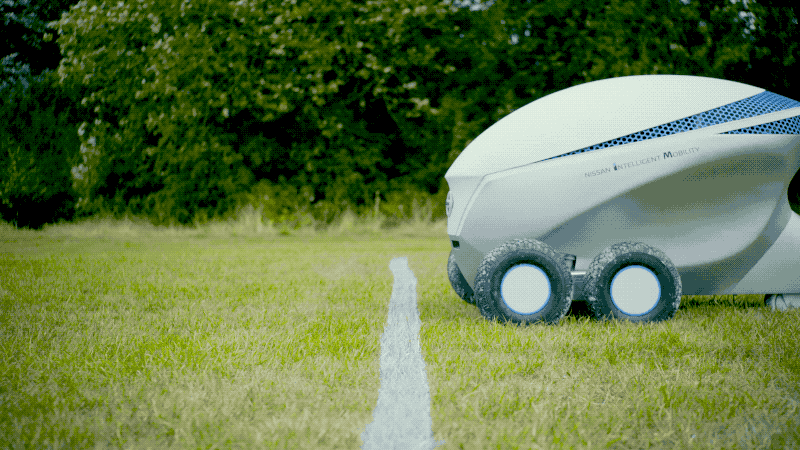

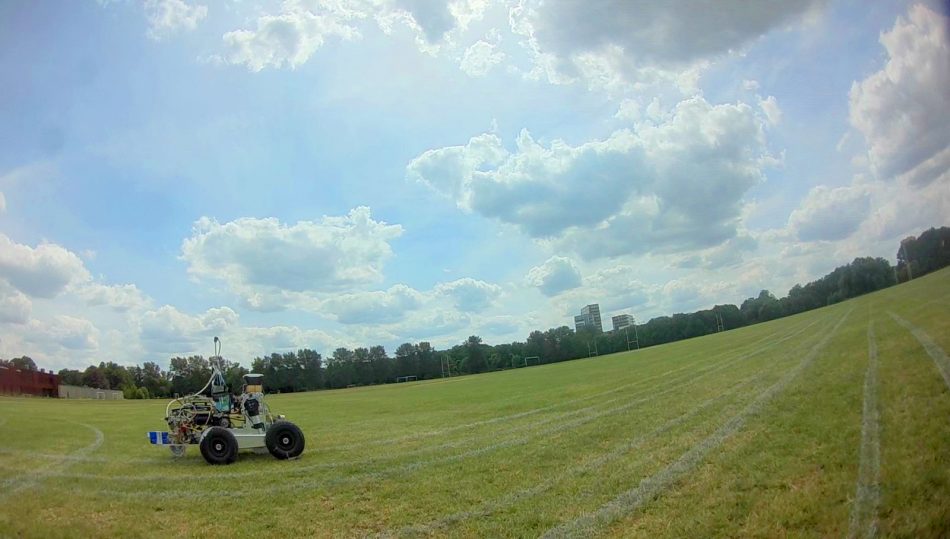

Nissan Pitch-R Robot, the first phase in the Nissan Footbal Lab initiative, paints a pitch in any location, bringing grassroots football to the masses. A research and development triumph, we built the entire robot and system from scratch, incorporating wheel traction, satellite movements and weight distribution. The final robot can paint an 11-a-side football pitch in 25 minutes, a 7-a-side in 14 minutes and a 5-a-side in 12 minutes.

Nissan Pitch-R Robot
Nissan Pitch-R Robot
Nissan Pitch-R Robot
Nissan Pitch-R Robot

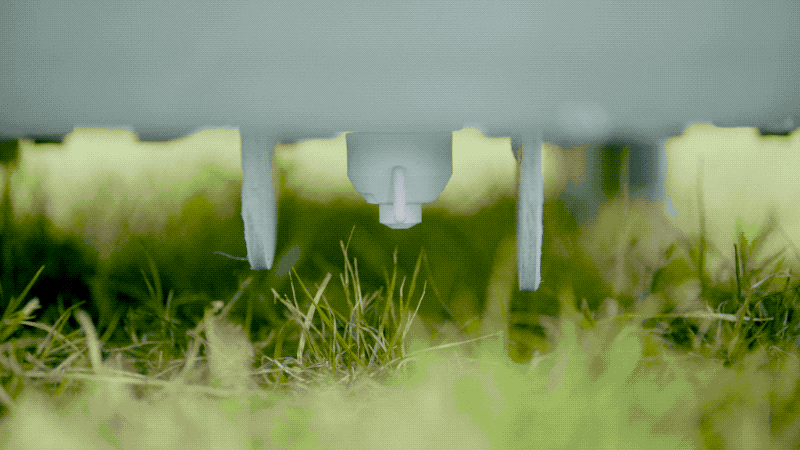

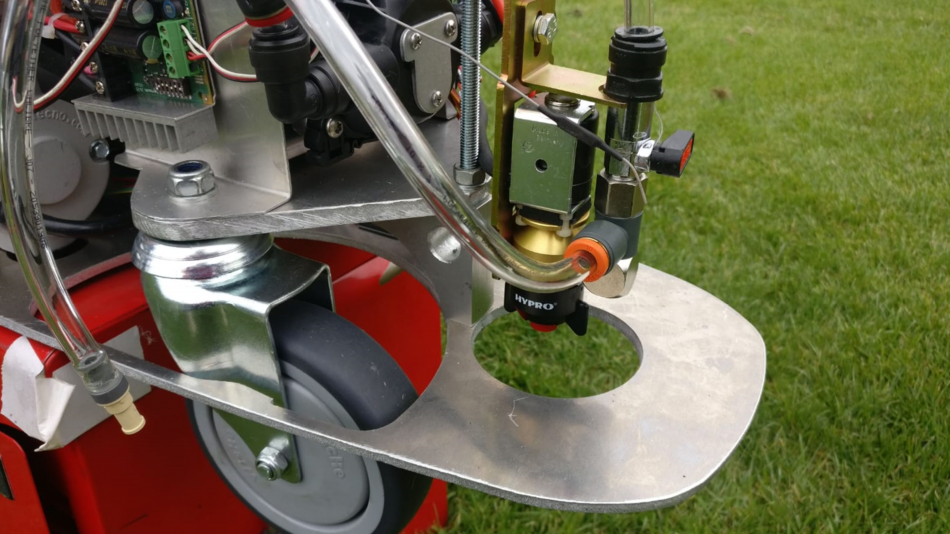

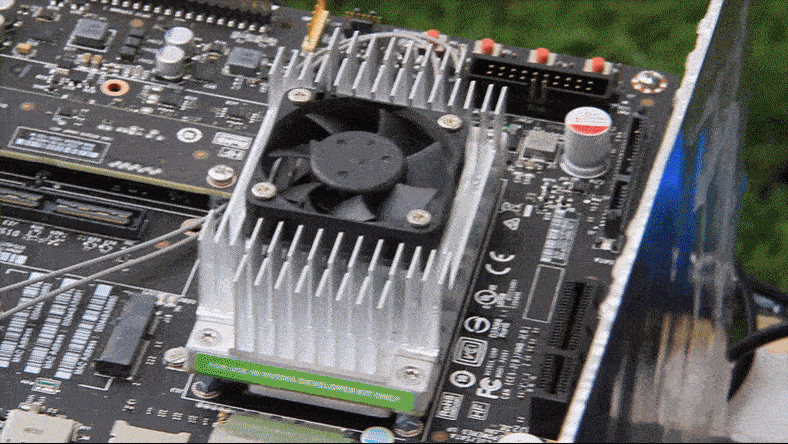

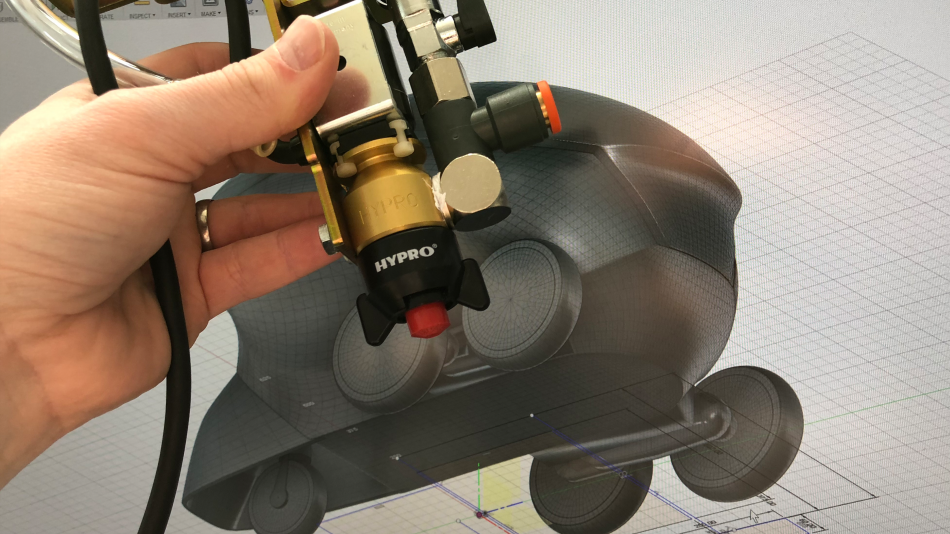

Our onboard EMLID GPS system allowed the robot to calculate its precise positioning so we could paint the lines accurately. We developed a hyper-intelligent object detection program from scratch using Nvidia technology and a ZED camera. This enabled the robot to analyze the space in front of it and decide if anything was in the way. The paint system was hacked from a much simpler line-painting system and upgraded to allow us remote control through our software.

We also developed a unique way to bridge the robots physical drive and our autonomous code, so the functions could be controlled from our computer back at base if needed.

Nissan Pitch-R Robot
Nissan Pitch-R Robot

The development timeline was a mere three months, and the learning curve was steep. But we were incredibly proud of the end product.

Nissan Pitch-R Robot
Nissan Pitch-R Robot
Nissan Pitch-R Robot

The results

This is just the beginning of the Nissan Football Lab—and we can’t wait to see how much more we can push it. We’ll continue to bridge the gap between smarter cars and smarter ways of enjoying the things you love.
